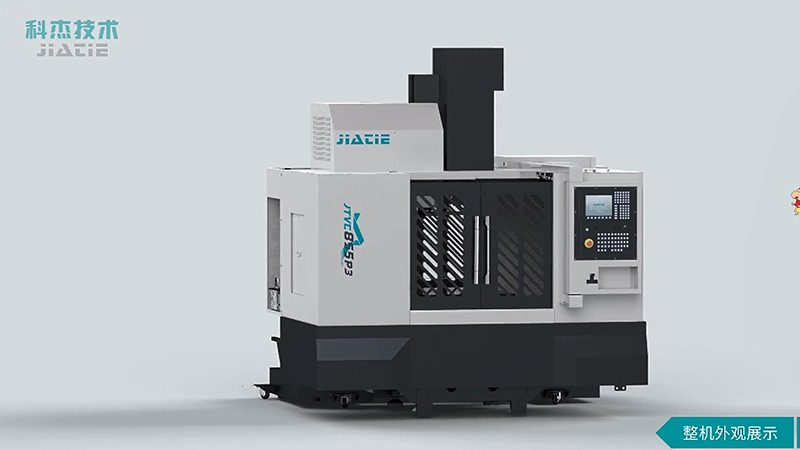

JTVC-855P3 Vertical Machining Center

Fast Cutting High Rigidity Large-torque

Component mass production in the industries of automotive accessories,aviation and aerospace,3C products,industrial automation,communication,etc

copper,aluminum,castingiron, steel,stainless steel, etc

Inquire Now

Product Processing Video

Advantages of The Product

Machine adapts FEM analysis

Improves machine weight-rigidity ratio.Machine equips with lightweight moving component,ensures stabilityof high acceleration movement

3-axis ball screw and linear guide perfectlymatches the machine property

Perform outstanding rigidity and accuracy under heavy load

Spindle with powerful motor and active coolingsystem

Ensure sufficient output during heavy cutting and dynamic cutting

Features of The Product

Years of machine design experience and finite element FEM analysis, exclusive structure design, effectively ensures the machine entire dynamic performance.
3 axes adopt linear guide design, low friction, low noise, ensures machine flexibility and stability. This makes the machine keeps accurate machining during faster moving.

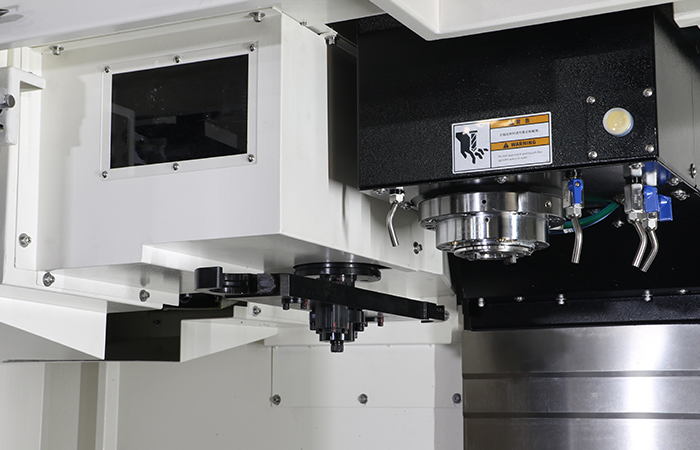

Arm type tool magazine capacity is 24 tools, stable and reliable, it is the necessity of product machining.
Adopt BT40 high-rigidity tool connector, equip with powerful motor, cutting performance is better.

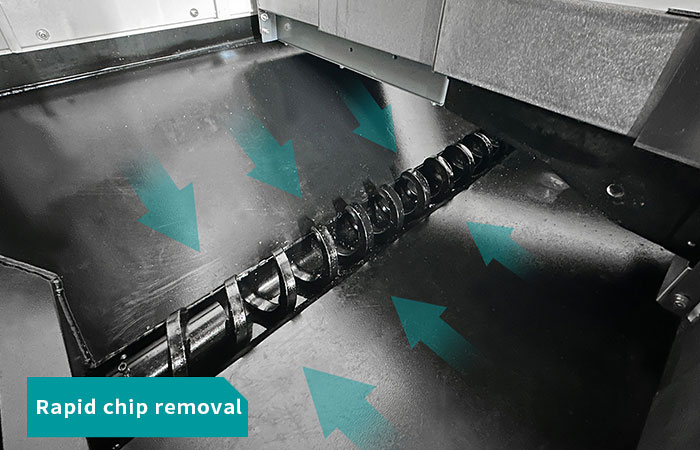

Two lateral slops to rear side chip removing, cutting fluid rear side placing design, humanized and high efficiency.
Excellent human-machine interaction design, the entire machine is fully sealing protection, convenient for operation.

Application Cases

Electric Terminal Box

Engine Shell

Engine Cover

Workpiece Shape Copying Fixture

New-Energy Component Part

New-Energy Car Charging Gun Mold

New-Energy Car Component

Specifications

Items	Technical Parameter
X/Y/Z travel	800/500/550mm
Work table dimension	1000x500mm
Max workpiece size	800×500×600mm
Max load of worktable	800kg
Machine net dimension	2580×2210×2750mm
Machine net weight	4500kg
Click for details in PDF	Specification Download

1732522733810092.pdf
