JTFZ-800 Four Z axis CNC Machine

Customized Multiple-axis Machining Solution

Machining of edge grinding, hole making, pocket making,chamfering, drilling, etcin the industries of phone, table tcomputer,intelligent wearing,intelligent house hold appliance and photo electricity,etc

glass,composite material,acrylic, stainless steel,aluminum,etc

Inquire Now

Product Processing Video

Advantages of The Product

Variousmachine dimensionsand axis combinationoption

flexibly match different machining and accuracy requirement

Accomplish programming with CNC controller orprogrammingon computer

Support adjustment of axis+ robot on CNC controller.

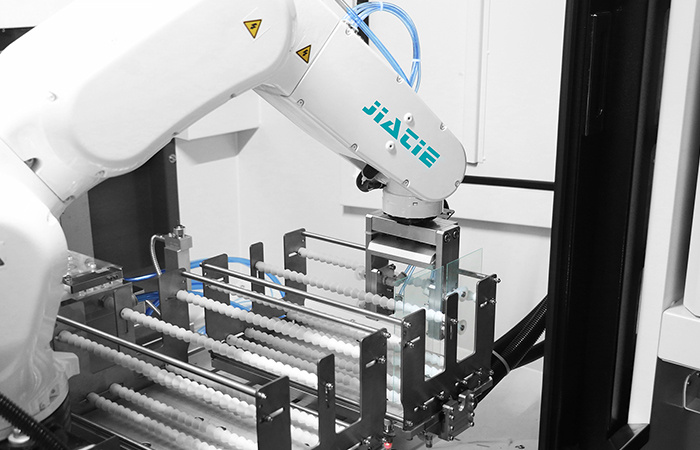

Automation can beinstalledinside themachine

Reducelaborworkload andimproveproduction efficiency

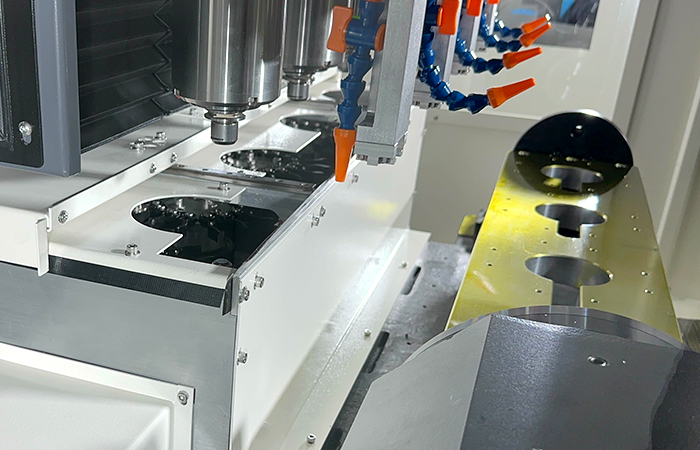

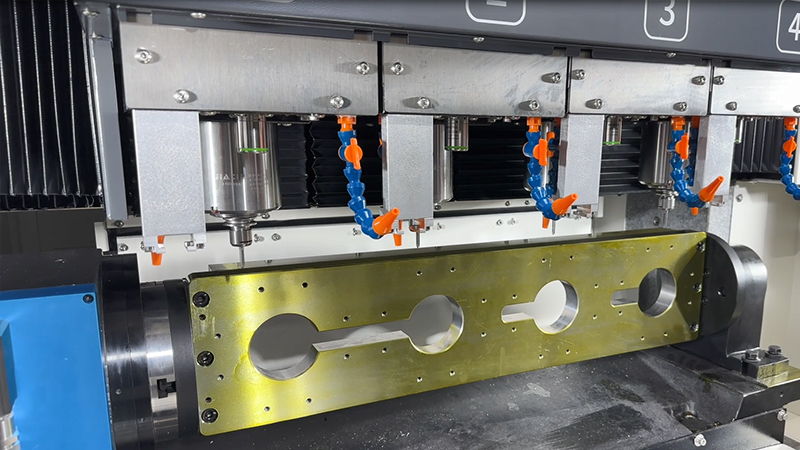

Breakthrough multiple-channeland multiple

Rotary-table machine solution,improveproduction output per metersquare

Features of The Product

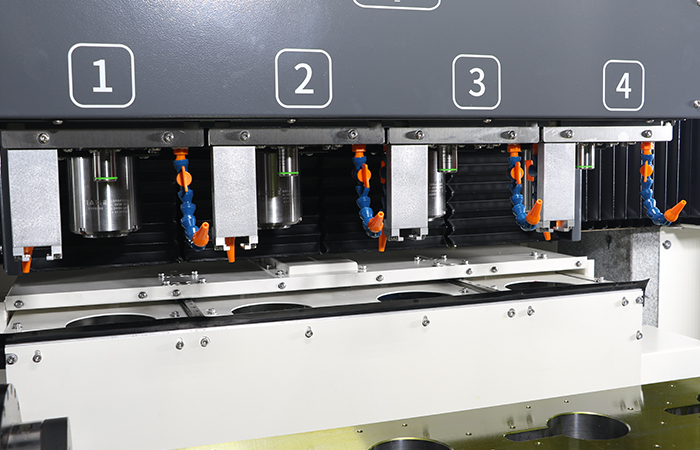

The machine has four spindles, each spindles can be controlled independently.
High-accuracy, high-speed and high-efficiency machining.
Excellent human-machine interaction interface, easy to operation.

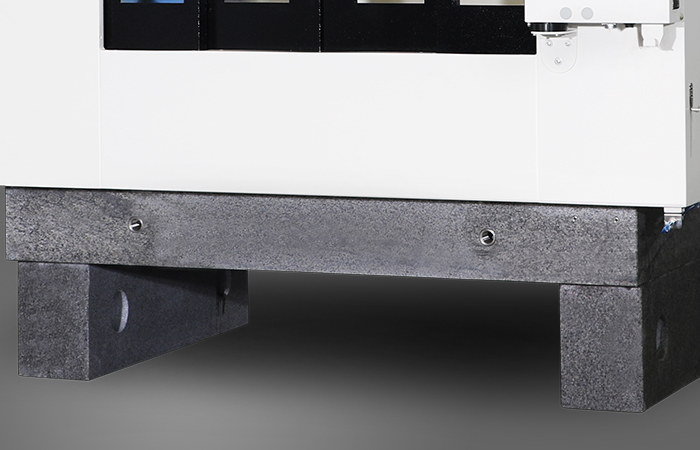

Natural granite machine bed structure has the machine in good accuracy retention and corrosion resistance.

Application Cases

Watch Frame

Watch Top Plate

Phone Back Cover

Phone Heat-Bending Glass Cover Plate

Phone Middle Frame

Volume Button

Specifications

Items	Technical Parameter
X/Y/Z travel	200/300/120mm
Work table dimension	800x300mm
Max workpiece size	160x300x280mm
Max load of worktable	100kg
Machine net dimension	1860×1780×2350mm
Machine net weight	4000kg
Click for details in PDF	Specification Download

1732514057662077.pdf
