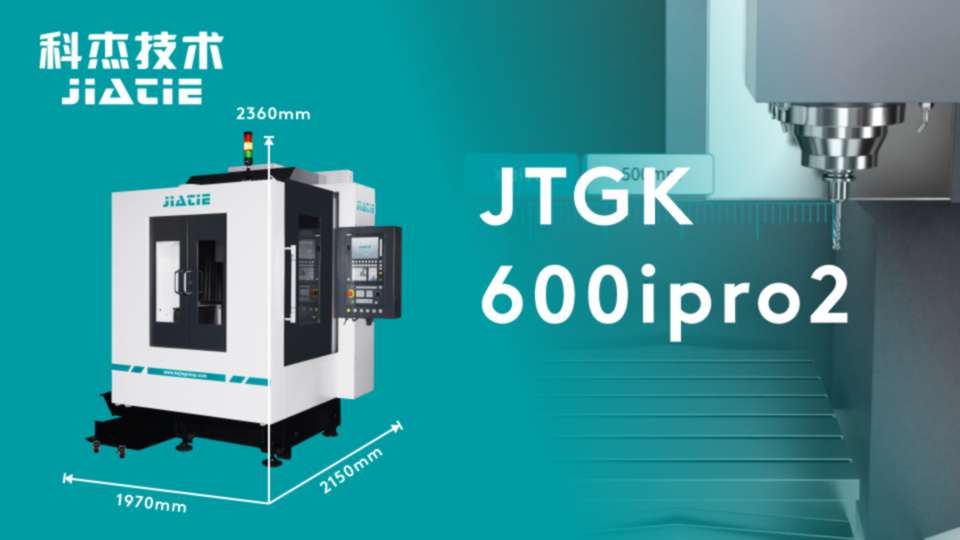

Cosmetic Milling Precision Mold, Electrode Guiding Solution
Application area: Machining of high surface requirement industries such as automotive, electrode, accurate mold, etc
Machining material: copper, aluminum, steel, stainless steel, etc
Brand new machine structure design, performance is more stable and reliable, high accuracy, fast speed and high rigidity.

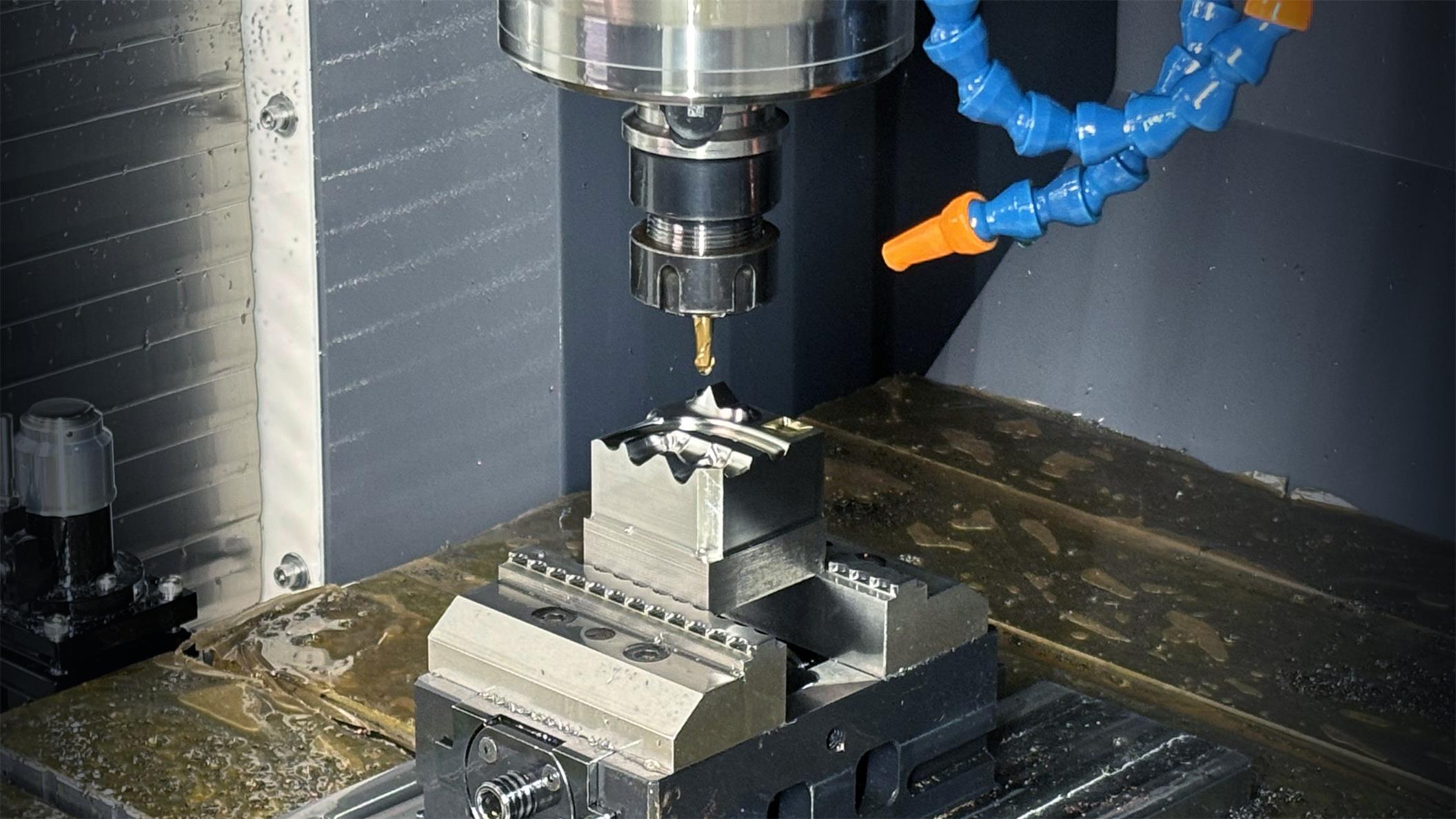

High-speed and high-accuracy spindle makes the milling machining performance especially outstanding.
Box type Z axis structure, better dynamic performance.

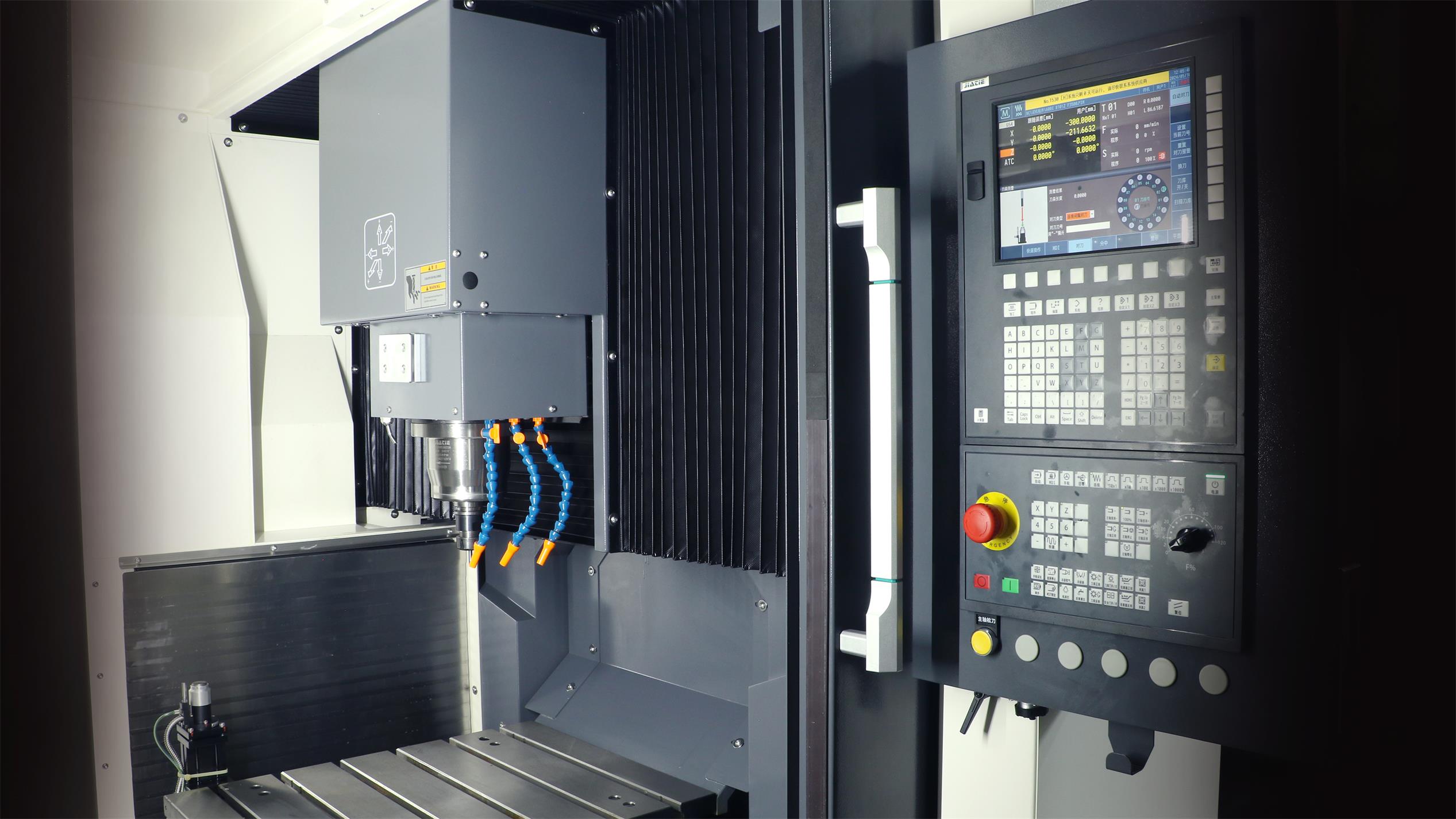

High-end all-in-one outer looking design, operation and management are more humanized, less floor area and humanized operation interface.

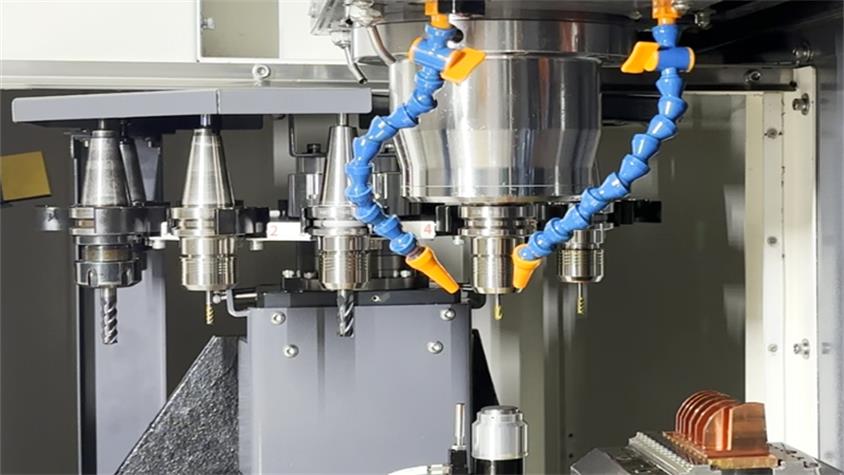

Servo type fast tool magazine, fast tool change, reliable.
| Items | Technical Parameter |
| X/Y/Z travel | 500/600/300 mm |
| Work table dimension | 500×650 mm |
| Max workpiece size | 500×600×240mm（Low column） 500x600x340mm（High column） |
| Max load of worktable | 300kg |
| Machine net dimension | 2150 x 2150 x 2420mm (Chain type tool magazine) 1970 x 2150 x 2420mm (Circular type tool magazine) |
| Machine net weight | 3300kg |
| Click for details in PDF | Specification Download |
Cosmetic Milling Precision Mold, Electrode Guiding Solution
Application area: Machining of high surface requirement industries suchas automotive, electrode, accurate mold, etc
Machining material: Carbon steel, alloy steel, high-temperature alloy, alloy aluminum, copper, etc
Cosmetic Milling Precision Mold, Electrode Guiding Solution
Application area: Machining of high surface requirement industries suchas automotive, electrode, accurate mold, etc
Machining material: copper, aluminum, steel, stainless steel, etc
Economical and practical machine
Application area: accurate mold, electrode, electronic product, automotive, aviation and aerospace, shoe manufacturing, spectacle, etc.
Machining material: copper, aluminum, aluminum alloy, carbon steel, steel alloy and partial non-metal material
Cosmetic Milling Precision Mold, Electrode Guiding Solution
Application area: Machining of high surface requirement industries such as automotive, electrode, accurate mold, etc
Machining material: copper, aluminum, steel, stainless steel, etc
