one-stop overall solutiondedicated for the special cutting processing requirements of MiniLED.
Application area:Semi-Conductor
Machining material:MiniLED
JTGK-600mi CNC Grinding Machine
one-stop overall solutiondedicated for the special cutting processing requirements of MiniLED.
Application area:Semi-Conductor
Machining material:MiniLED
Closed loop control mode, suitable for any Mini LED board, even Micro LED board cutting.
Automatic loading and unloading doors are reserved for realize automation.

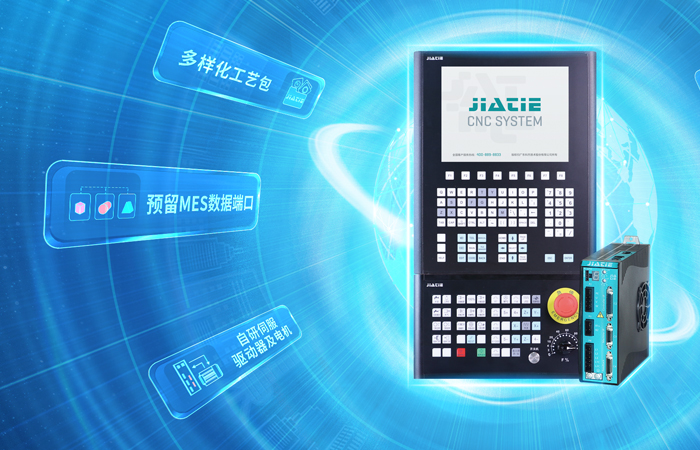

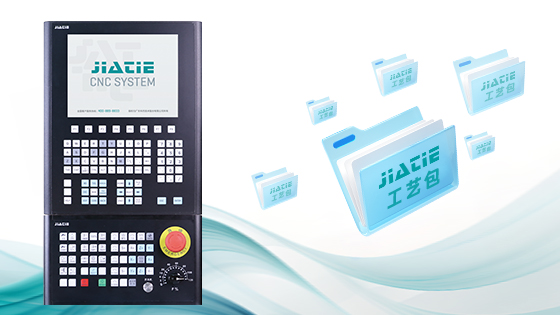

CNC system reserved MES system data port, the communication protocol is widely compatible.

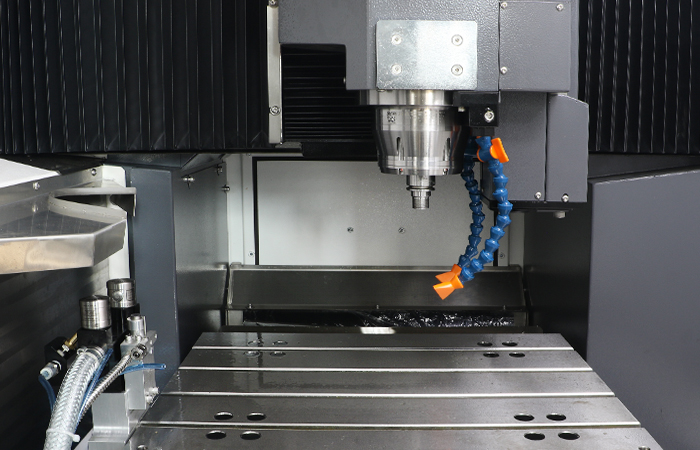

The inside of the machine tool adopts stainless steel material to prevent rust in the pure water processing environment effectively.
High-precision CCD automatic dynamic correction system Can recognize various Mark marks.
In-machine measurement system performs testing after processing to ensure high yield.
Laser tool setting instrument, detect the tool diameter and dynamic runout automatically.
| Items | Technical Parameter |
| X/Y/Z travel | 500/400/200mm |
| Work table dimension | 530×430mm |
| Max workpiece size | 420x400x260mm |
| Max load of worktable | 150kg |
| Machine net dimension | 1550×2000×2250mm |
| Machine net weight | 3000kg |
| Click for details in PDF | Specification Download |
High RPM High Accuracy for Hard to cut Material
Machining for industry applications of aviation and aerospace, medica product,semi-conductor,etc

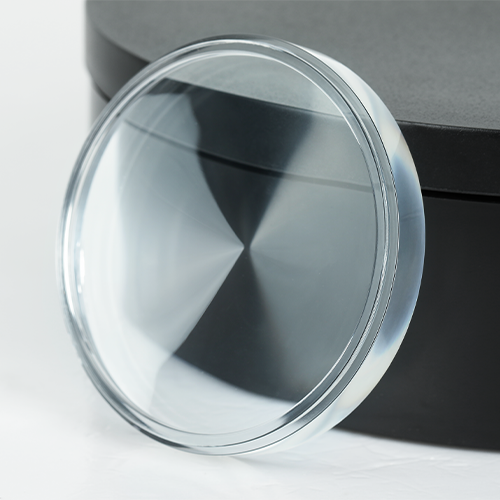

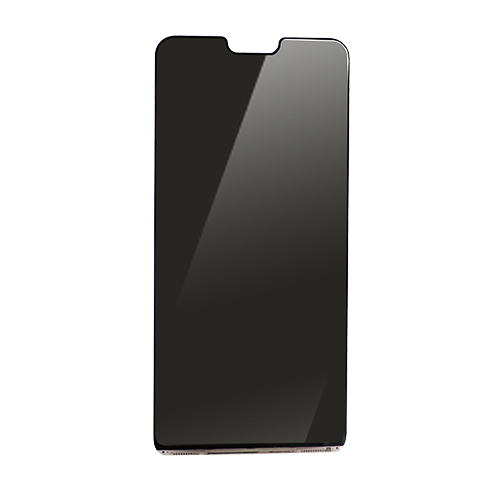

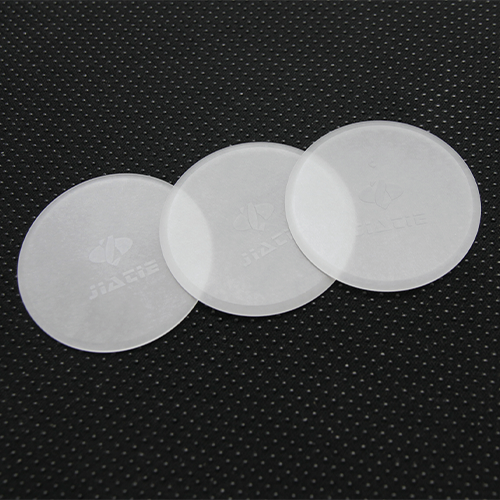

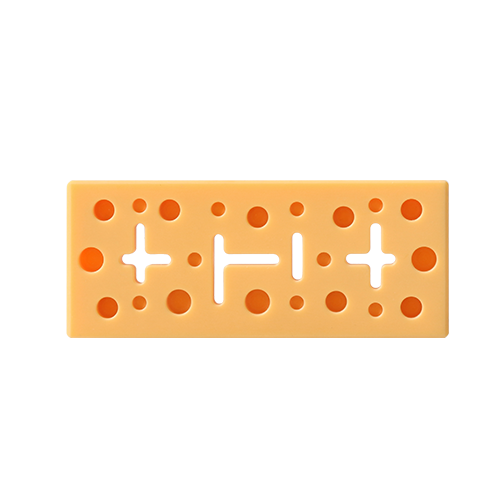

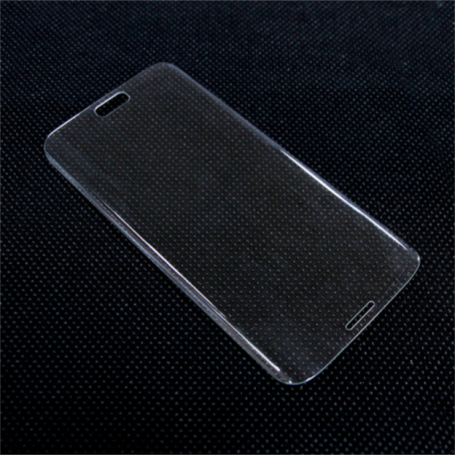

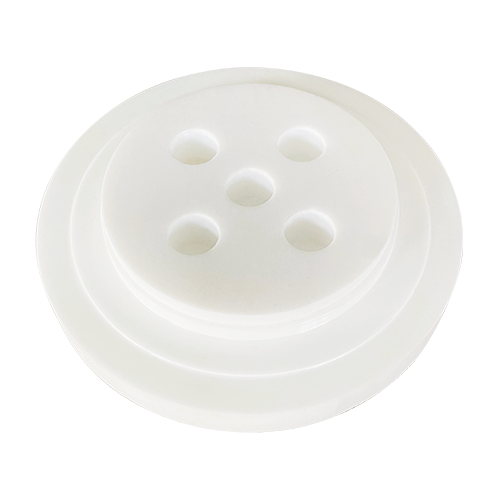

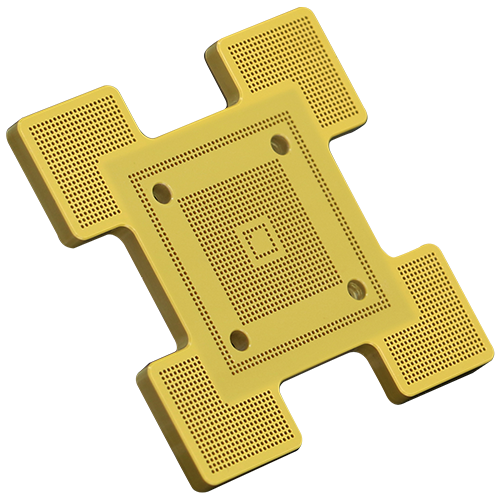

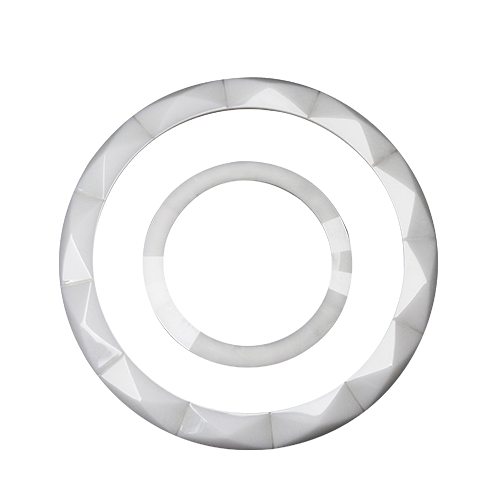

glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics
High RPM High Accuracy for Hard to cut Material
Machining for industry applications of aviation and aerospace, medicaproduct,semi-conductor,etc
glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics
High RPM High Accuracy for Hard to cut Material
Machining for industry applications of aviation and aerospace, medicaproduct,semi-conductor,etc
glass, ceramic, sapphire,silicon carbide, silicon nitride and etc,titanium,engineering plastics
