JTMA-200 5-Axis High Speed Machine

Complex Surface,lrregular Part Precision Machining

Accurate component parts of 5-axis simultaneousmachiningdemandfor aviation and aerospace, electric car, medicalinstrument,etc

copper,aluminum,steel,stainless steel,titanium,quenched material,high polymer material,etc

Inquire Now

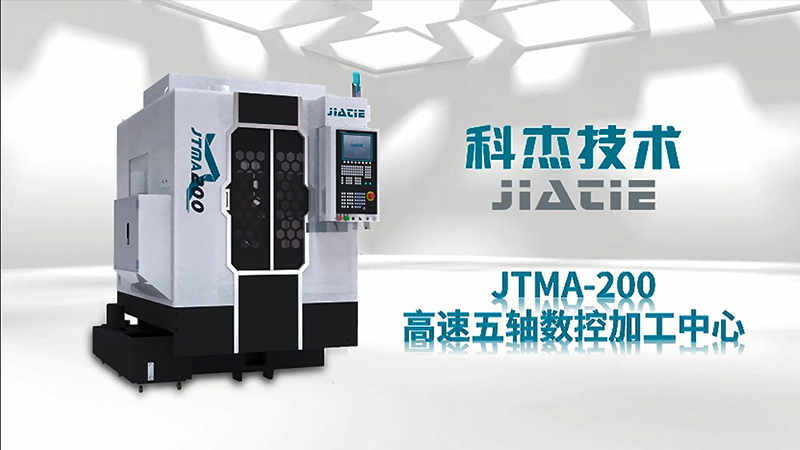

Product Processing Video

Advantages of The Product

Entire series equips with RTCP function

Ensure high-accuracy smooth 5-axis simultaneous machining

Advantage gantry structure

Provides good dynamic properties and accuracy stability for simultaneous machining accuracy

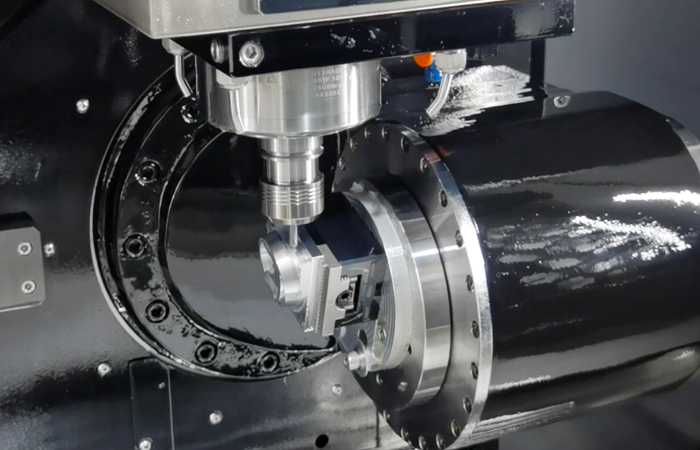

JlATlE Direct Drive Rotary

Fast response onrotarymotion,accomplish reliable 5-axis simultaneous function

Features of The Product

Fully closed loop control technology makes machine machining more accurate and reliable.
High-accuracy, high-speed and high-efficiency machining.
Excellent human-machine interaction design ensures the operational comfort and convenience for operator.

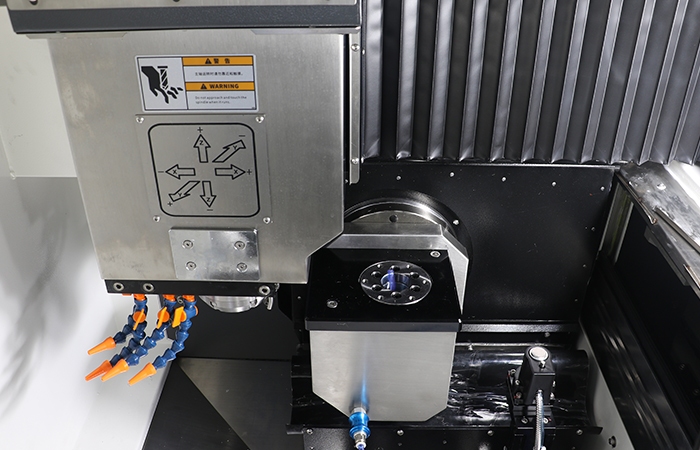

Gantry structure makes machine dynamic property and precision retention better.

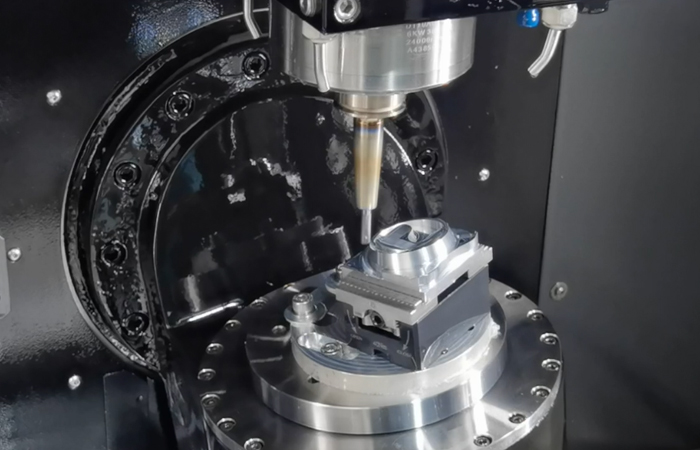

Equip with DD direct drive 5-axis rotary tables.

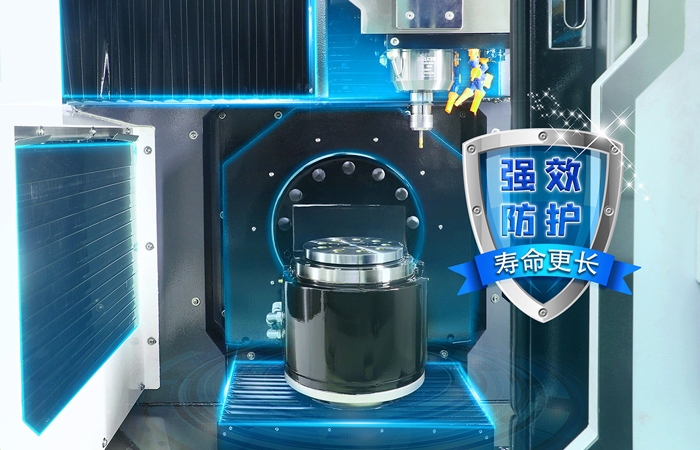

The moving components are completely isolated from the machining area that is easy for machine cleaning.

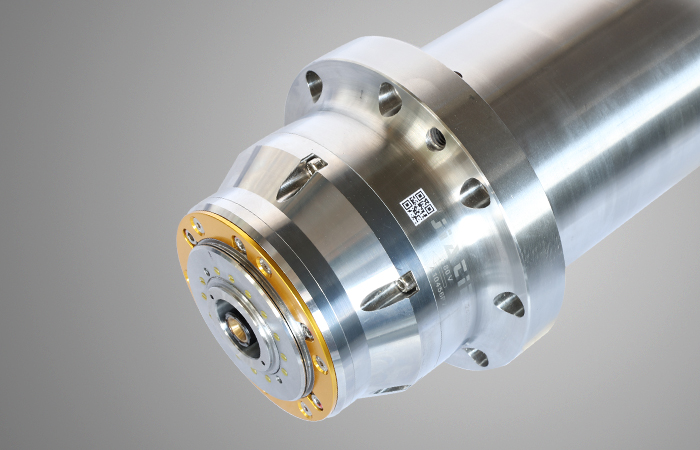

A large torque or high-speed spindle is optional for meeting machining needs of different industries .

Application Cases

Meniscus Prosthesis Part

Teeth Shape Electrode

Earphone Mold

Femoral Condyle Testing Part

Spinal Intraosseous Expander

5-Axis Car Light

5-Axis Lens

5-Axis Composite Testing Part

Impeller

Specifications

Items	Technical Parameter
X/Y/Z travel	550/240/250mm
Work table dimension	Φ160mm
Max workpiece size	Φ220x120mm
Max load of worktable	30kg
Machine net dimension	1650×1850×2180mm（Circular type tool magazine） 2110×1850×2180mm（Chain type tool magazine）
Machine net weight	3000kg
Click for details in PDF	Specification Download

1732522351719527.pdf
