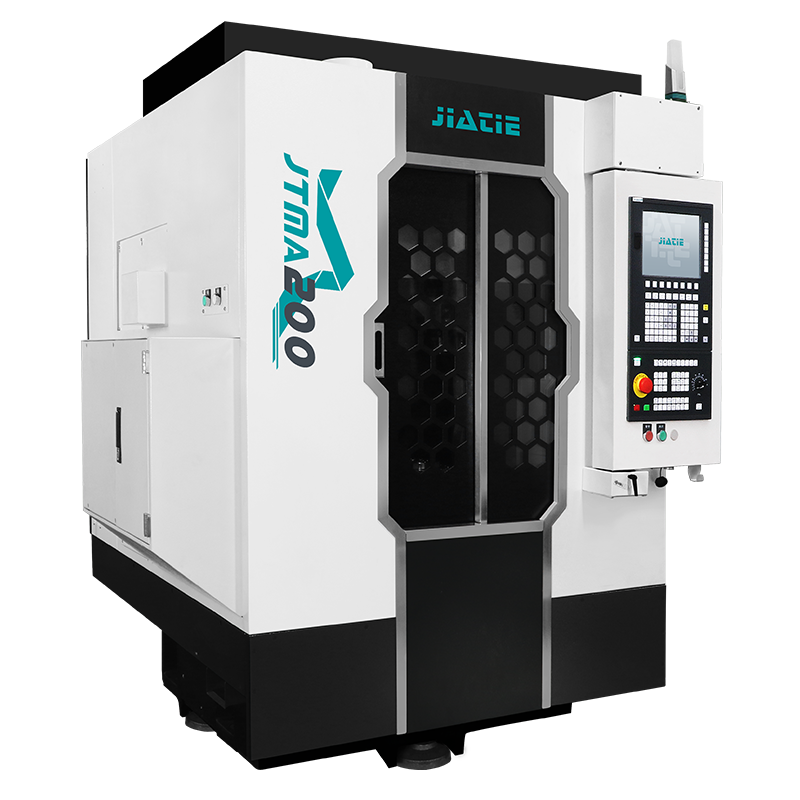

5-axis CNC machine is a highly precise processing equipment that can perform simultaneous processing in five axes. Compared with traditional three-axis CNC machine, 5-axis CNC machine has higher processing flexibility and complex shape processing capability.
5-axis CNC machine is a CNC processing equipment with 5 degrees of freedom. Unlike ordinary three-axis machine (X, Y, Z directions), 5-axis CNC machine adds two rotation axes, usually A and B, which allow the tool to freely adjust in complex angles and shapes. The design of this machine enables it to process complex surfaces that are difficult to achieve with traditional three-axis machine, thereby improving processing accuracy and efficiency.
Features
High-precision processing: The biggest advantage of 5-axis CNC machine is that it can complete the precision processing of complex parts at one time, reducing the errors caused by multiple clamping and improving processing accuracy. It can efficiently produce parts with complex geometric shapes and high precision requirements.
Multi-angle processing: The two additional rotation axes allow the 5-axis CNC machine to contact the workpiece surface from different angles without repeated clamping. It can process holes, curved surfaces and inclined planes at multiple angles, making it very suitable for the production of complex molds and precision parts.
Save time and cost: Since 5-axis machines can complete the processing tasks of complex parts at one time, the number of clamping and tool setting is reduced, thereby greatly shortening the processing time and reducing labor and production costs.
Wide range of material applicability: 5-axis CNC machines can process a variety of materials, including metals (such as aluminum alloys, stainless steel, titanium alloys, etc.), plastics, wood and composite materials. This makes it suitable for the different needs of multiple industries.
High degree of Automation: 5-axis CNC machines are usually equipped with advanced CNC systems, which can optimize the processing path and reduce the risk of errors through software programming and simulation. Modern 5-axis machines have a very high degree of automation and can achieve unattended automated processing.
Application fields
Aerospace: 5-axis CNC machines are very common in the aerospace field and are used to produce aircraft engine parts, structural parts, etc. These parts have complex geometries and high precision requirements, so 5-axis processing has become the standard configuration of the industry.
Automotive manufacturing: In the automotive industry, 5-axis CNC machines are used to produce engine parts, transmission parts and complex molds. Especially in the field of electric vehicles, the requirements for precision and complex shapes are higher, making 5-axis machining the main choice.
Medical equipment: The field of medical equipment requires high-precision and high-complexity parts. 5-axis CNC machines can produce orthopedic implants, dental instruments and other precision medical devices that meet strict standards.
Mold manufacturing: Molds have complex curved surfaces and high precision requirements. 5-axis CNC machines can produce various types of molds, such as injection molds, die-casting molds, etc., to ensure the surface finish and dimensional accuracy of the molds.
Energy industry: In the energy industry, 5-axis CNC machines are used to manufacture wind turbine blades, nuclear power equipment components, etc. These components usually require large size, complex structure and high precision.
In order to keep the 5-axis CNC machine tool running efficiently and extend its service life, daily maintenance and care are essential. Here are some important maintenance and care recommendations:
Daily cleaning: Keeping the machine tool clean is the basis of maintenance work. The workbench, tool and chip groove should be cleaned regularly to prevent chips and oil accumulation. Pay special attention to cleaning the processing area to avoid damage to the equipment by cutting fluid and metal dust.
Lubrication system inspection: 5-axis CNC machine tools have complex transmission and rotation systems, and the use of lubricating oil should be checked regularly. Ensure that the oil tank is sufficient and the lubricating oil pipe is not blocked, so that all moving parts can be fully lubricated to reduce friction and wear.
Cooling system maintenance: Check the concentration and level of the coolant, replace or replenish the coolant regularly to prevent the influence of high temperature on the processing accuracy. The normal operation of the cooling system is crucial to the processing quality.
Electrical system inspection: Regularly check the electrical system and control panel to ensure that the line connection is firm and the signal is stable. Replace aging or damaged electrical components in time to prevent unexpected failures.
Tool and fixture maintenance: Regularly check the wear of the tool, and replace the tool with severe wear in time to ensure the processing accuracy. Keep the fixture in good condition, ensure that the workpiece is firmly clamped, and reduce the processing error caused by the fixture problem.
Precautions for use
Programming accuracy: When performing 5-axis processing, programming accuracy is crucial. Programming errors may cause damage to the workpiece or machine tool failure. Use simulation software to verify and optimize the processing path to reduce programming errors.
Choose the right tool: 5-axis processing has high requirements for tool selection. Different materials and processing tasks require the selection of appropriate tool types, materials and coatings. Ensure that the tool is sharp and properly installed to improve processing efficiency and quality.
Avoid overload processing: During the processing process, avoid overloading the machine tool to avoid damage to the spindle and transmission components. Reasonably set cutting parameters such as cutting speed, feed speed and cutting depth to ensure the stability and safety of processing.
Fixing of workpieces: When performing 5-axis processing, the fixation of workpieces is very important. The workpiece should be fixed with a suitable fixture or vacuum suction cup to avoid loosening or displacement during high-speed processing.
Training and safe operation: Professional knowledge and skills are required to operate 5-axis CNC machine tools. Ensure that the operator is fully trained, familiar with the functions and operating specifications of the machine tool, and abide by safe operating procedures to prevent accidents.
The high precision, flexibility and automation capabilities of 5-axis CNC machine tools make them an important tool in modern manufacturing. Reasonable daily maintenance and scientific operation methods are the key to keeping the equipment running efficiently.
