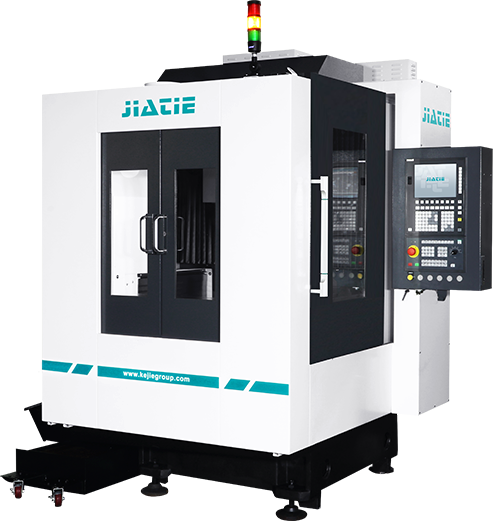

The JTGK-600i Pro2 CNC Machining Center is a high-performance CNC Machining Center developed by KEJIE TECHNOLOGY CO., LTD. (also known by the brand JIATIE), designed specifically for industries requiring high surface finish quality, such as automotive, electrode, and precision mold manufacturing. With an entirely new machine structure design, this equipment offers excellent precision, speed, and rigidity, making it suitable for processing materials like copper, aluminum, steel, and stainless steel.
Key Features:
New Machine Structure Design: The JTGK-600i Pro2 features a revolutionary structure, delivering enhanced stability and reliability with superior precision, speed, and rigidity.
High-Speed, High-Precision Spindle: Equipped with a high-speed, high-precision spindle, this machine excels in milling performance.
Box-Style Z-Axis: A box-type Z-axis structure improves dynamic performance, ensuring optimal results during operations.
High-End Integrated Design: The sleek and integrated exterior design makes the machine compact and user-friendly. It occupies minimal space and offers an intuitive operating interface.
Technical Specifications:
Travel: X/Y/Z axes with 500mm, 600mm, and 300mm ranges respectively.
Worktable Size: 500mm × 650mm with a maximum load capacity of 300kg.
Spindle: 7.2kW or 7.5kW power, with maximum speeds of 24,000rpm and 30,000rpm, featuring a BBT30 interface.
Rapid Traverse Speed: 15m/min with a cutting feed rate of 10m/min.
Accuracy: Positioning accuracy of 0.008mm/300mm and repeatability of 0.005mm.
Machine Weight and Dimensions: Weighs 3,300kg with overall dimensions of 2,150mm × 2,150mm × 2,360mm (chain-type tool magazine) or 1,970mm × 2,150mm × 2,360mm (disc-type tool magazine).
Power Supply: 3-phase AC380V ±10% (50Hz).
Standard Accessories:
High-speed CNC controller
High-speed spindle
AC servo motors
Precision ball screws and guide rails
Automatic tool changer
Automatic tool setter
Spindle cooling system
Optional Accessories:
Oil mist collector
Voltage stabilizer
4-axis rotary table
With advanced technology and flexible configurations, the JTGK-600i Pro2 CNC Machining Center is well-suited for complex and high-precision processing needs. Its efficient, stable performance makes it an ideal choice in industries requiring superior surface quality. This machine represents a reliable solution for boosting productivity and product quality.
Founded in 1998, KEJIE TECHNOLOGY CO., LTD. has been committed to producing top-tier equipment in the manufacturing industry. With a team of nearly 1,000 employees, the company is a recognized leader in the field, contributing to the drafting of the PRC National Standard for High-Speed CNC Machining Centers. In 2023, KEJIE TECHNOLOGY was honored as a National Intellectual Property Advantageous Enterprise and remains a key player in Guangdong Province's manufacturing sector.
