Precision Machining
Home > Solutions for Industries > Precision Machining

Application Cases

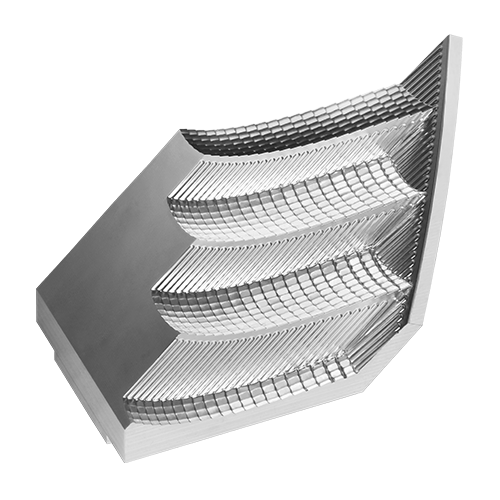

Car Light Reflective Mold
Car Light Reflective Mold
Material: mold steel
Dimension: 200x100 mm
Machining properties:
1. Tool mark is even and the corner is clear ;
2. Surface roughness Ra<0.08μm.

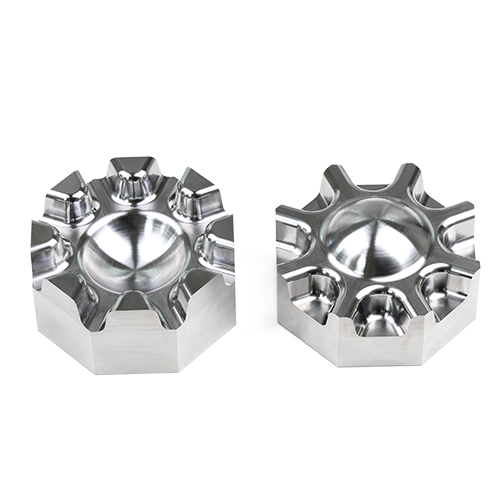

Accurate Curved Surface Assembling Test Part
Accurate Curved Surface Assembling Test Part
Material: S136 Steel
Dimension: 100x100x40mm
Machining properties:
1. Assembly gap≤0.005mm；
2. Octagonal testing part, no gap in 8 directions within one set.

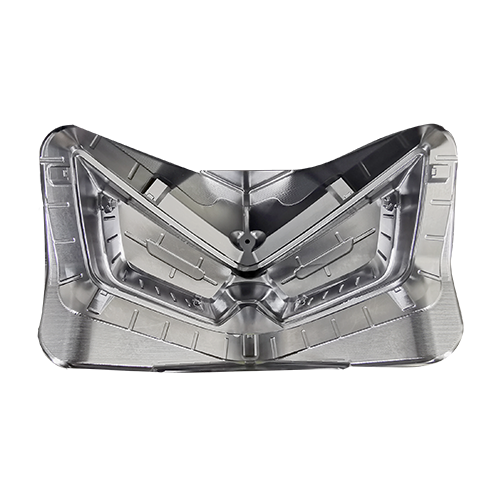

Deep Pocket Automotive Accessories Mold
Deep Pocket Automotive Accessories Mold
Material: Mold steel
Dimension: HRC 48~52
Machining properties:
1. Roughing and finishing combined , production time reduces 20%, accuracy ±0.015；
2. Combine with on-machine modifying, reduce human adjustment.

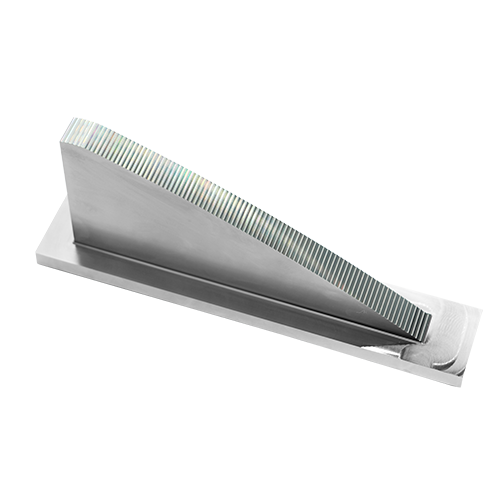

Light Guiding Bar
Light Guiding Bar
Material: S136 Steel
Dimension: 182x30x70 mm
Machining properties:
1. High speed spindle, nanometre feeding, surface roughness Ra<0.06μm ;
2. Clear corner, ensures optical conductivity of guiding bar

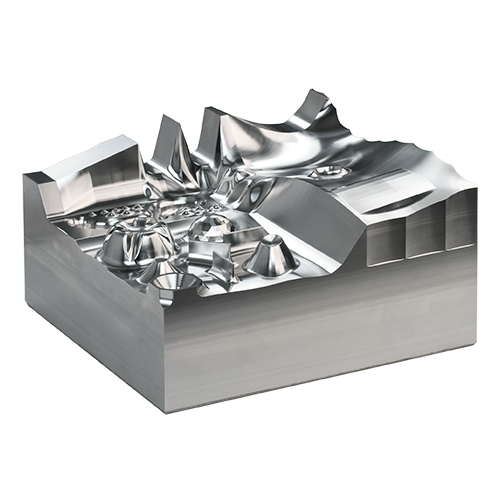

High Speed Shape Testing Part
High Speed Shape Testing Part
Material: S136 Steel
Dimension: 200x200x100mm
Machining properties:
1. Surface roughness Ra≤0.15μm ;
2. Curved surface profile accuracy ±0.015mm.

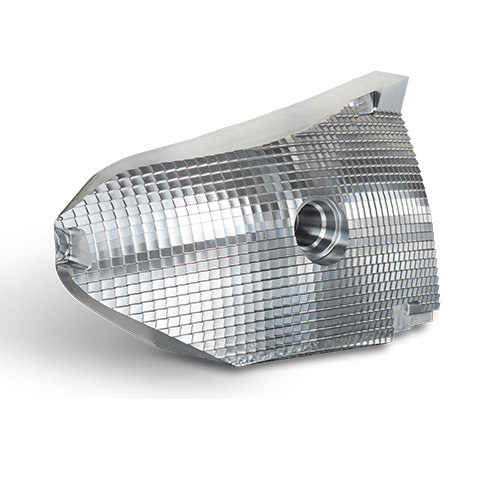

5-Axis Car Light
5-Axis Car Light
Material: 7075 Aluminum
Dimension: 106x50x53mm
Machining properties:
1. High smoothness, clear cross line of the curved surface, no burr, good machining consistency;
2. Surface roughness Ra<0.08μm.

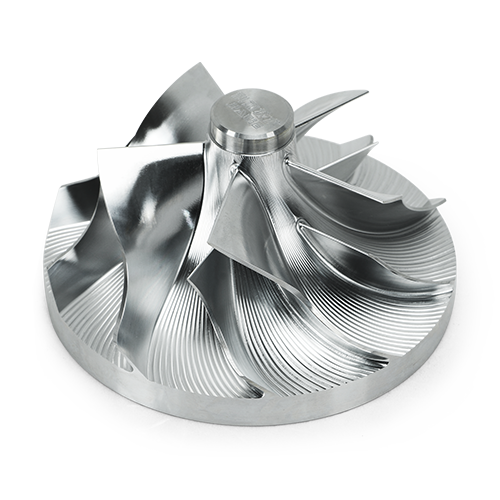

Impeller
Impeller
Material: 6061 aluminum alloy
Dimension: Ø115x60mm
Machining properties:
1. Surface roughness Ra<0.9μm；
2. 5-axis simultaneous machining, smooth and delicate surface, no reverse mark, blade even and balancing are good.
Watch Shell
Watch Shell
Material: titanium Ti-6A-4V
Dimension: 49x55x12mm
Machining properties:
1. Minimum cutting tool R0.15mm, small spindle vibration, improves cutting tool fatigue life;
2. Good machining consistency, high smoothness.

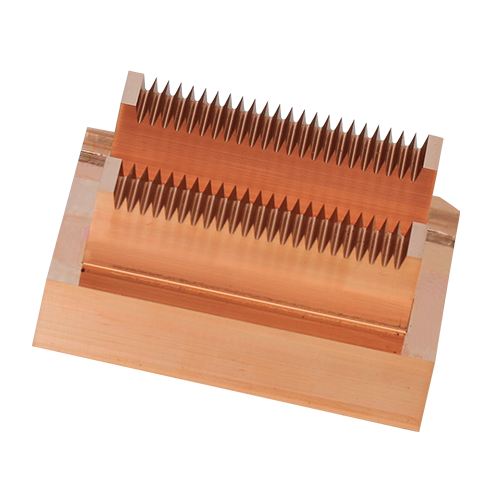

Copper Male Connector
Copper Male Connector
Material: Copper
Dimension: 30x30x30mm
Machining properties:
1. Center distance tolerance of two adjacent columns <0.002mm ;
2. No obvious tool mark under 40X magnify scope.

Recommended Machines

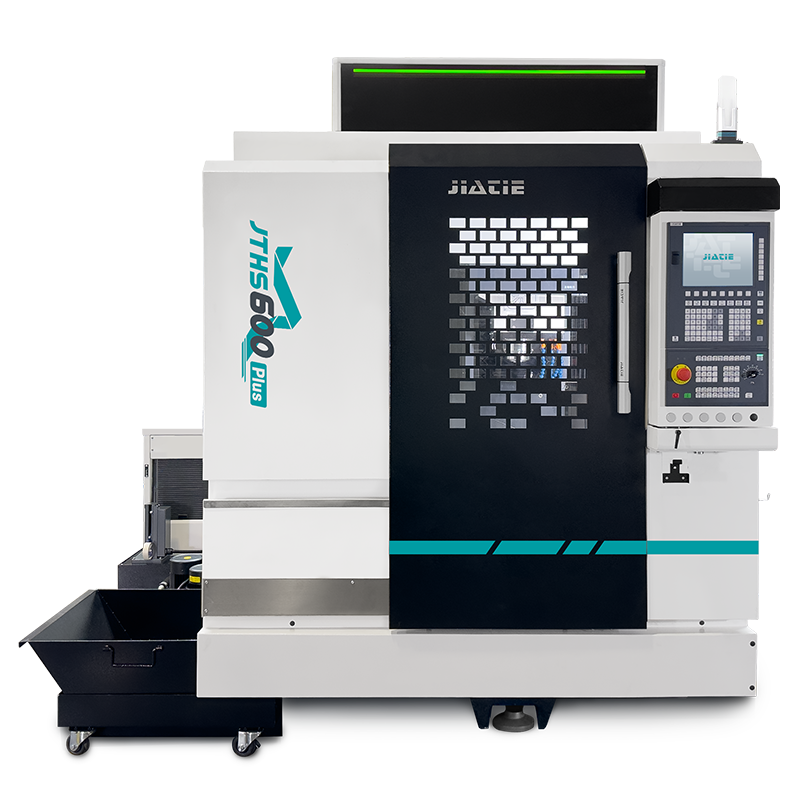

JTHS-600 Plus CNC High Speed Machine
JTHS-600 Plus CNC High Speed Machine

High-rigidity High-efficiency Roughing Machining

Mold inserting part, accurate electrode,accurate component machining

Special copper, aerospace aluminum,high hardness steel,quenched material,etc

View Details

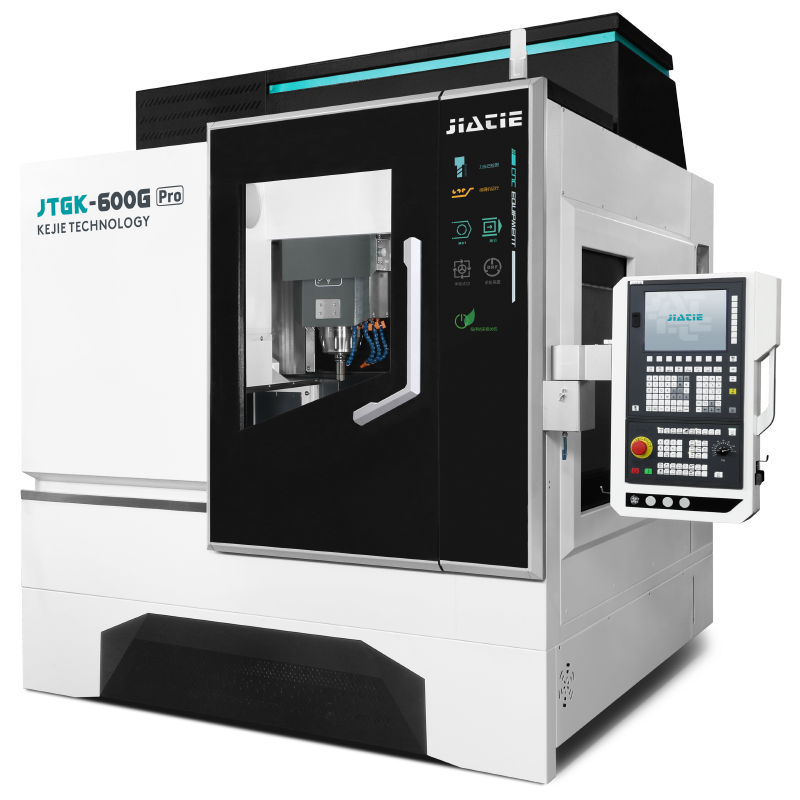

JTGK-600G Pro CNC High Speed Machine
JTGK-600G Pro CNC High Speed Machine

High-rigidity High-efficiencyRoughing/Finishingone-stop Machining

Mold inserting part, accurate electrode, accurate component machining

Special copper, aerospace aluminum, high hardness steel, quenched material, etc

View Details

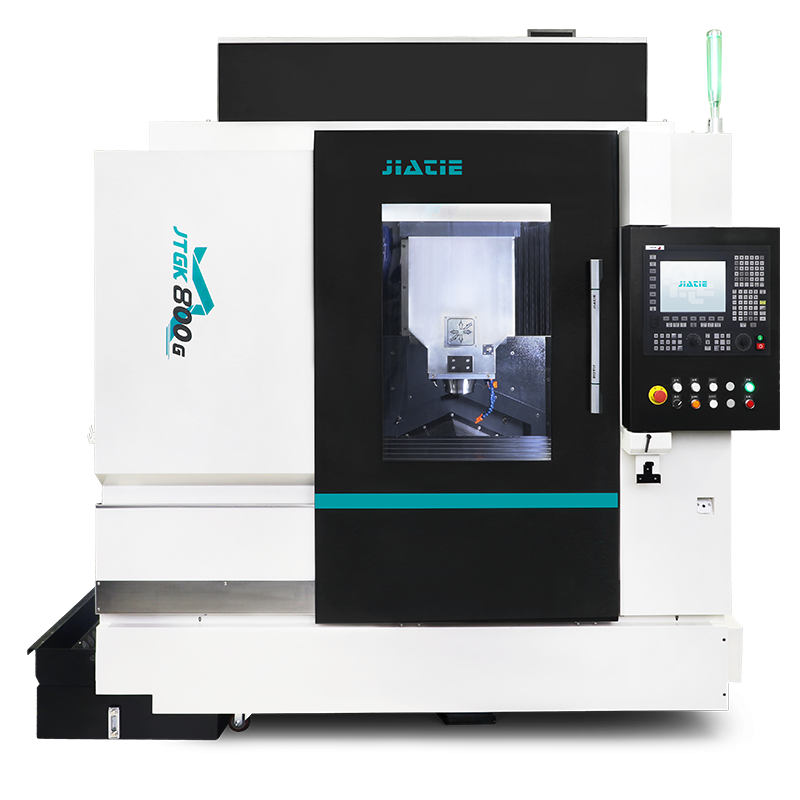

JTGK-800G CNC High Speed Machine
JTGK-800G CNC High Speed Machine

Long Travel High-rigidity High-efficiencyRoughing/Finishingone-stop Machining

Mold inserting part, accurate electrode, accurate component machining

Special copper, aerospace aluminum, high hardness steel, quenched material, etc

View Details

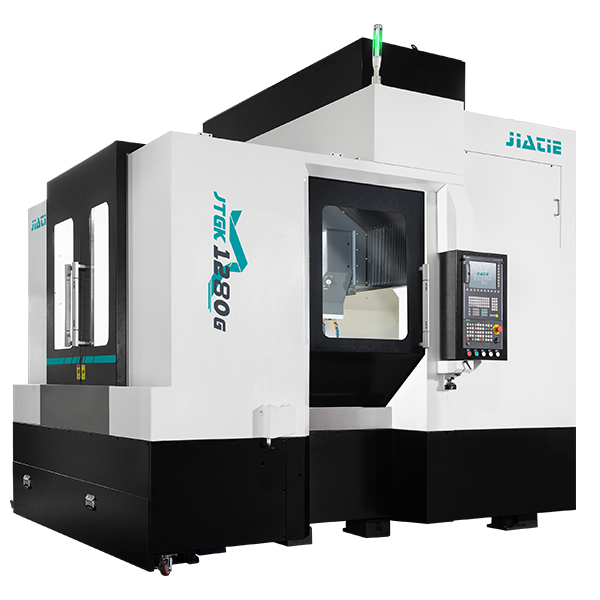

JTGK-1280G CNC High Speed Machine
JTGK-1280G CNC High Speed Machine

Long Travel High-rigidity High-efficiencyRoughing/Finishingone-stop Machining

Mold inserting part, accurate electrode,accurate component machining

Special copper, aerospace aluminum, high hardness steel, quenched material, etc

View Details
