Precision Molds/Electrodes

Home > Solutions for Industries > Precision Molds/Electrodes

Application Cases

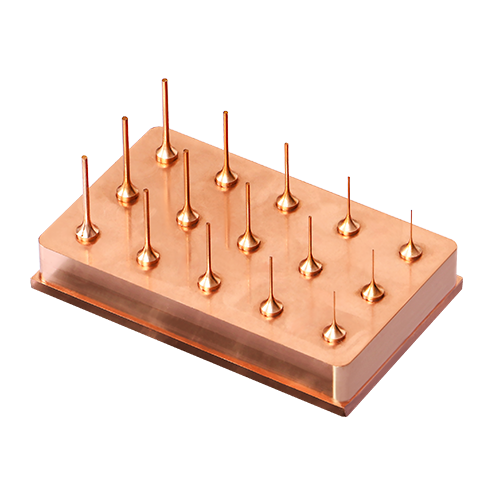

0.18mm Micro Needle

0.18mm Micro Needle

Material: Chrome copper
Dimension: 54X31X25mm
Machining properties:
1. Dimension accuracy± 0.005mm；
2. Diameter of each needle column are only 0.18mm.

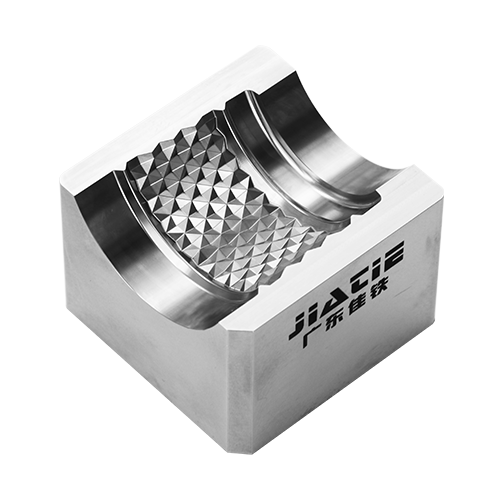

Glass Mold

Glass Mold

Material: Stainless Iron
Dimension: 70x70x50mm
Machining properties: Sharp corner is clear, no burr, high tool mark consistency.

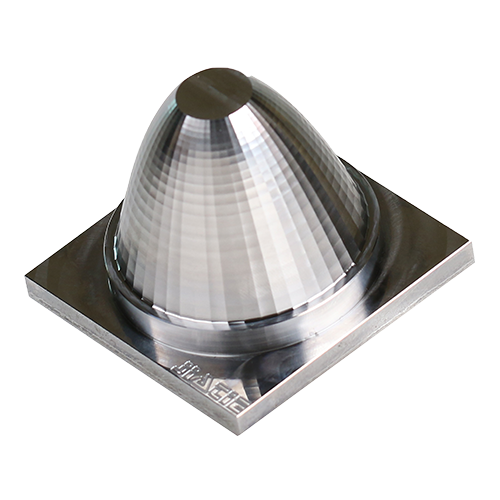

Optics mold

Optics mold

Material: S136 Steel
Dimension: 35X35X35mm
Machining properties:
1. Corner has clear shape, no tool line mark；
2. Tool mark consistency is good, no dispersed mark.

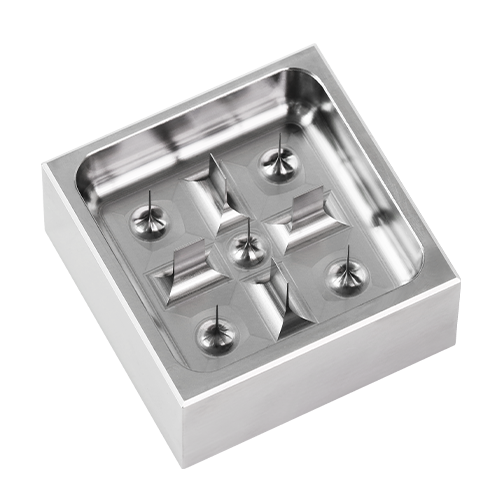

Micro Needle Thin Piece Testing Part

Micro Needle Thin Piece Testing Part

Material: steel（NAK80）
Dimension: 49X49X25mm
Machining properties:
1. Needle-shape, thin-shape thickness 0.2mm, length 10mm;
2. Good consistency of surface tool mark, no burr.

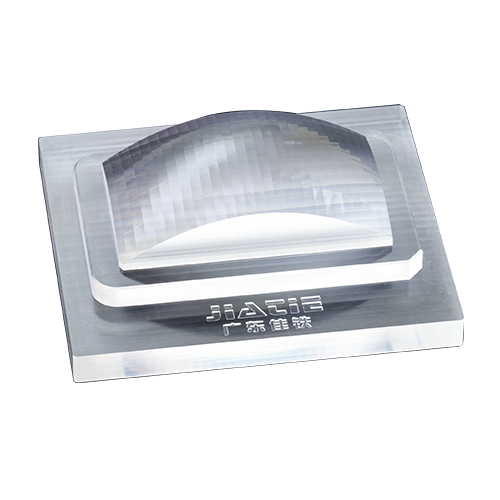

Headlight Prototype

Headlight Prototype

Material: Acrylic
Dimension: 80x70x30mm
Machining properties:
1. Surface roughness Sa＜0.3μm;
2. Transparent machining surface, curved surface clear , no burr,good consistency.

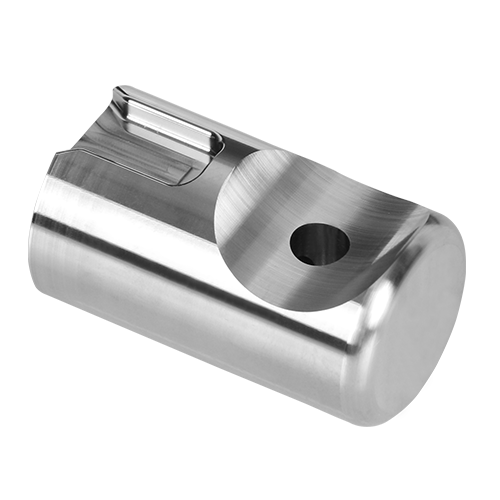

Oil Sprayer

Oil Sprayer

Material: Stainless steel
Dimension: 20x20x34mm
Machining properties:
1. Surface roughness Ra≤0.2μm;
2. Drilling, milling, tapping combine machining , high smoothness.

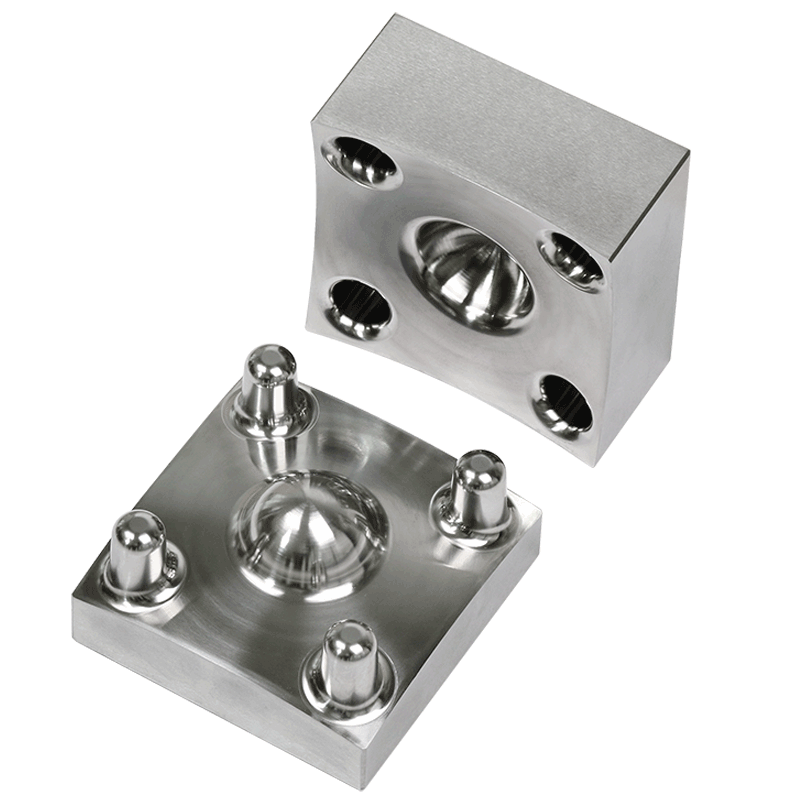

Compound Inserting Parts

Compound Inserting Parts

Material: S136 Steel
Dimension: 76x76x53mm
Machining properties:
1. Matching gap is less than 5μm；
2. The convex part and the concave part can match in 4 directions.

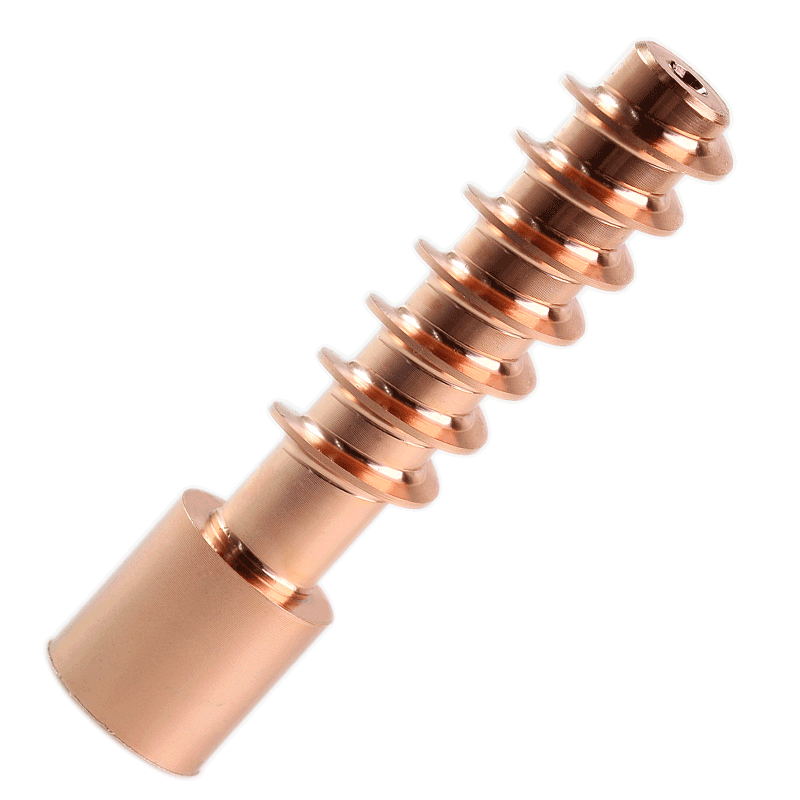

Worm Thread Electrode

Worm Thread Electrode

Material: Copper
Dimension: Ø14.5x63mm
Machining properties:
Adapt 4th axis machining, high smoothness, no burr, good tool mark consistency.

Earphone Mold

Earphone Mold

Material: S136 Steel
Dimension: 40X32X23mm
Machining properties:
Surface performance is even, curved surface tolerance<0.01mm，inner hole roughness Sa <0.02μm.

Recommended Machines

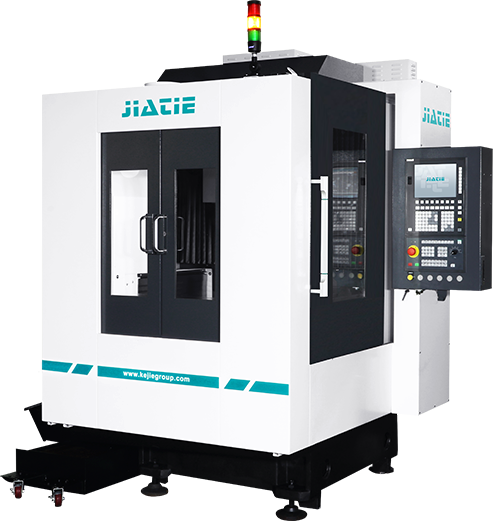

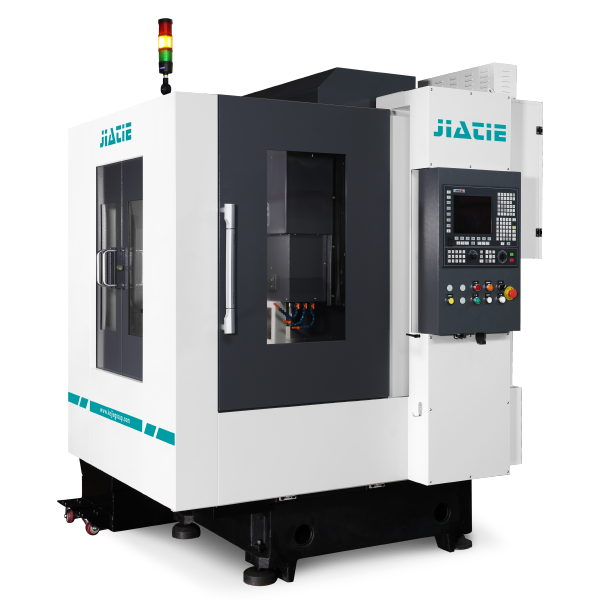

JTGK-600i Pro2 CNC Machining Center

JTGK-600i Pro2 CNC Machining Center

Cosmetic Milling Precision Mold, Electrode Guiding Solution

Application area: Machining of high surface requirement industries such as automotive, electrode, accurate mold, etc

Machining material: copper, aluminum, steel, stainless steel, etc

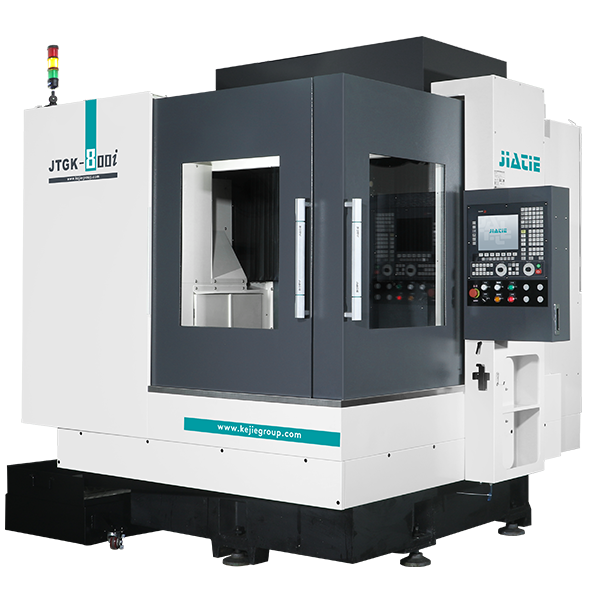

JTGK-800i CNC Machining Center

JTGK-800i CNC Machining Center

Cosmetic Milling Precision Mold, Electrode Guiding Solution

Application area: Machining of high surface requirement industries suchas automotive, electrode, accurate mold, etc

Machining material: Carbon steel, alloy steel, high-temperature alloy, alloy aluminum, copper, etc

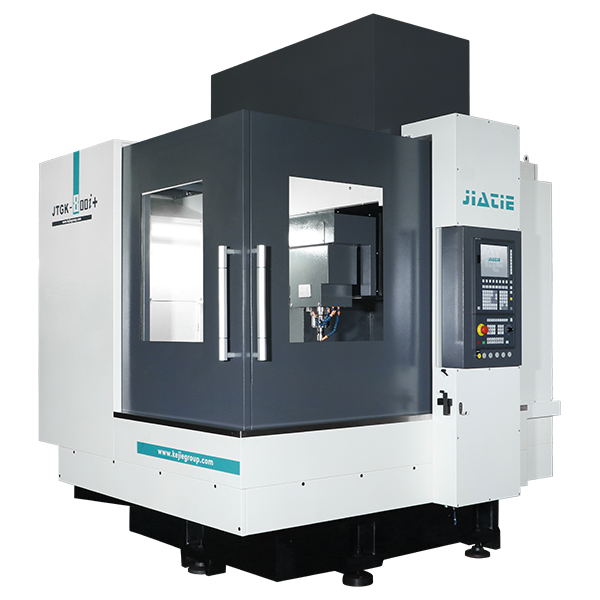

JTGK-800i + CNC Machining Center

JTGK-800i + CNC Machining Center

Cosmetic Milling Precision Mold, Electrode Guiding Solution

Application area: Machining of high surface requirement industries suchas automotive, electrode, accurate mold, etc

Machining material: copper, aluminum, steel, stainless steel, etc

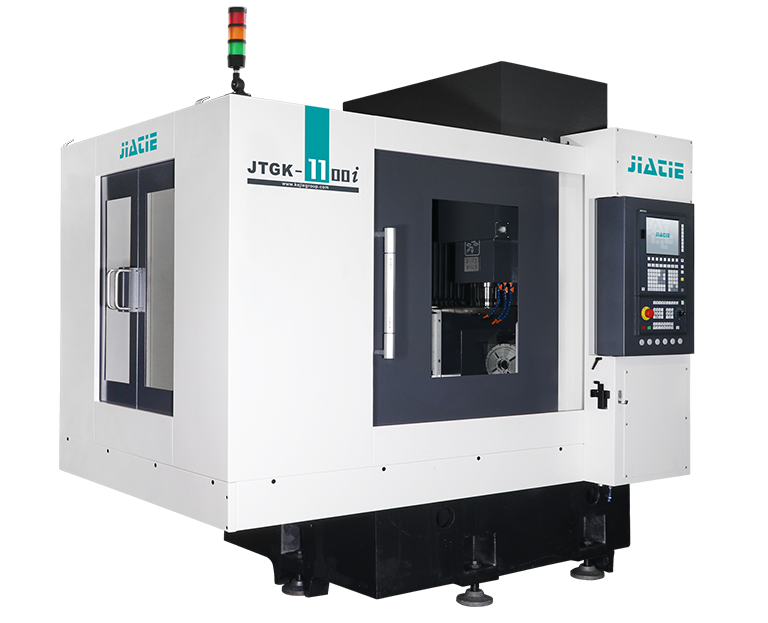

JTGK-1100i CNC Machining Center

JTGK-1100i CNC Machining Center

Economical and practical machine

Application area: accurate mold, electrode, electronic product, automotive, aviation and aerospace, shoe manufacturing, spectacle, etc.

Machining material: copper, aluminum, aluminum alloy, carbon steel, steel alloy and partial non-metal material
