5-Axis Machining Center Series

Home > Product Center > 5-Axis Machining Center > JTDR-550-5-Axis Machining Center

JTDR-550-5-Axis Machining Center

5-axis Accurate PositioningMulti-Surface One-time Machining

Machining component of medium-small size box /lid/plate/shell/disk, mold machining, automobile,instruments and meters,lightindustry and textile,electroni cappliances, aviation and aerospace,machine manufacturing,etc

copper,aluminum,steel,stainless steel, magnesium,titanium,etc

Inquire Now

Advantages of The Product

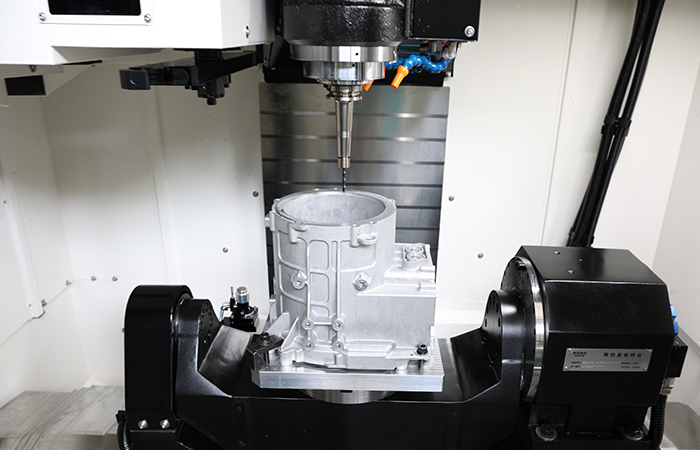

5-axisintegrated design

Rotary tables areembedded in the machine structure, providelarger workingspace and travel

JlATlE system provide RTCP function

Easier tolearn and use 5-axis machining

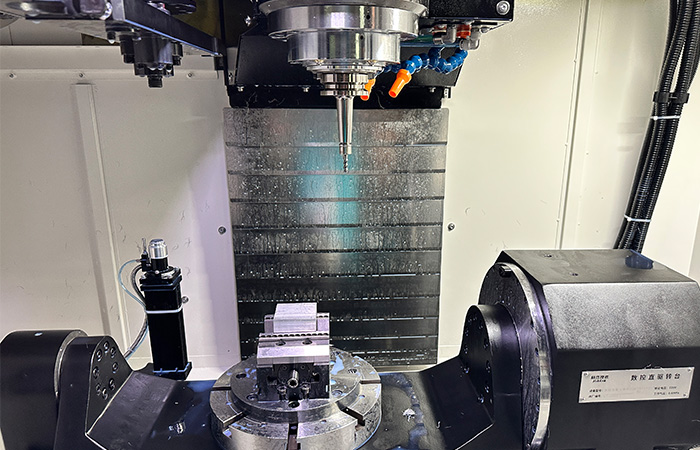

Direct-drive rotary table supports multi-surfacemachiningin mass production

no need forregularmaintenance,eliminate mechanical gap

Features of The Product

High rigidity main structure, with higher precision stability.
Large torque DD direct drive rotary table, high precision, fast positioning, shorten the processing auxiliary time.

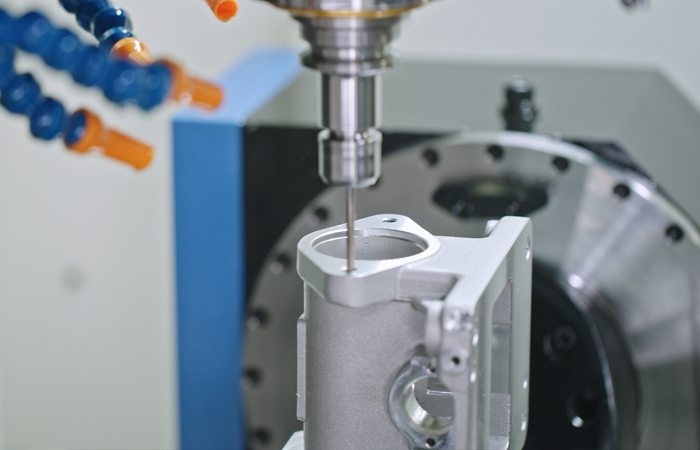

High rigidity interface spindle realizes higher cutting performance and machining surface quality.
Fully enclosed compact external protection design, closer operating distance, greatly improve the convenience of operation.

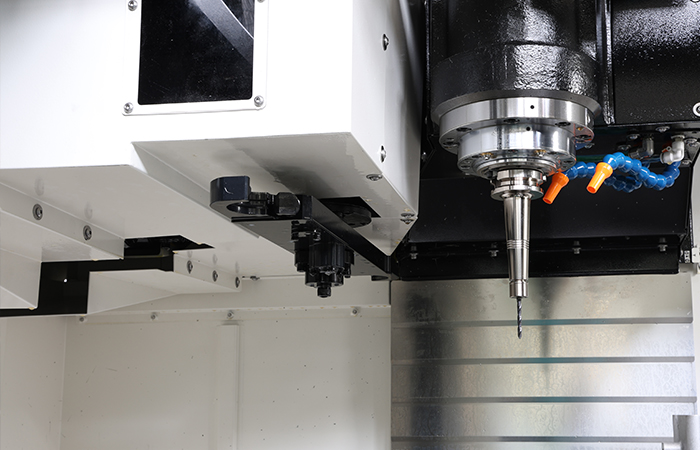

Automatic tool changer, can load a large number of tools, fast tool changing.

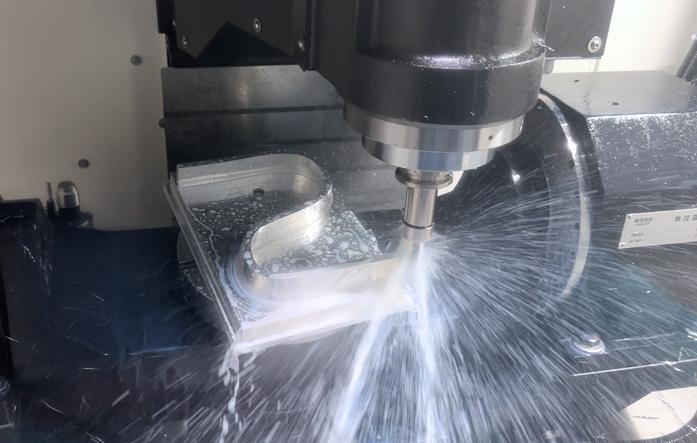

Machining area with big slop design, chips removal more direct, reduce chips accumulation and the frequency of cleaning and maintenance in the machine.

Excellent human-machine interaction interface and easy operation.

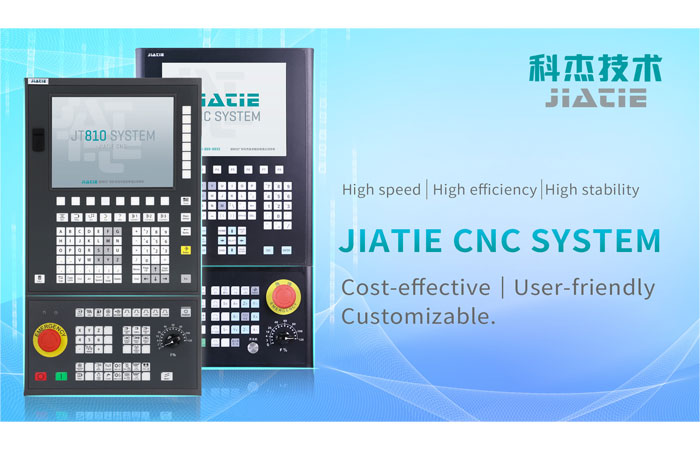

Independently developed CNC system, powerful and reliable.

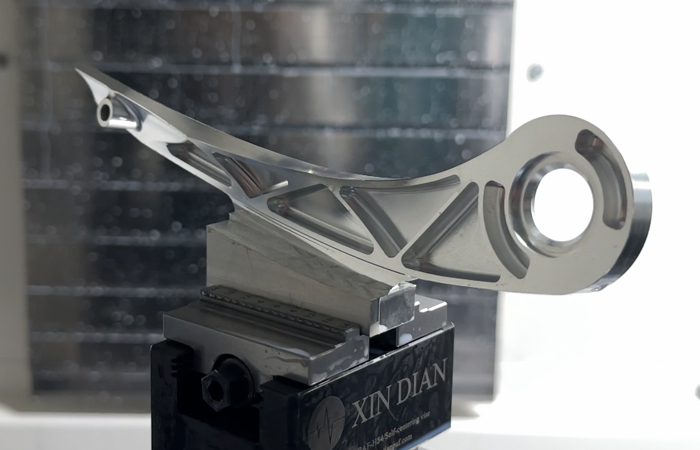

Application Cases

High-accuracy impeller

Metal component

Worm gear thread copper male electrode

Shoe bottom mold

New-energy automotive component

Bicycle wheel hub component

Specifications

Items	Technical Parameter
X/Y/Z travel	550/500/550mm
Work table dimension	φ260mm
Max workpiece size	φ550x570mm
Max load of worktable	150kg
Machine net dimension	2000×2410×2970mm
Machine net weight	4500kg
Click for details in PDF	Specification Download

1732507075730952.pdf
