5-Axis High Speed Machine Series

Home > Product Center > 5-Axis High Speed Machine > JTMA-300 5-Axis High Speed Machine

JTMA-300 5-Axis High Speed Machine

Complex Surface,lrregular Part Precision Machining

Accurate component parts of 5-axis simultaneousmachiningdemandfor aviation and aerospace, electric car, medicalinstrument,etc

copper,aluminum,steel,stainless steel,titanium,quenched material,high polymer material,etc

Inquire Now

Advantages of The Product

Entire series equips with RTCP function

Ensure high-accuracy smooth 5-axis simultaneous machining

Advantage gantry structure

Provides good dynamic properties and accuracy stability for simultaneous machining accuracy

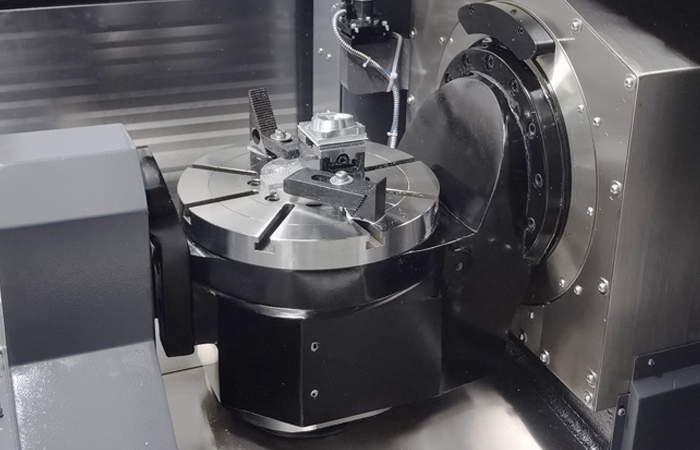

JlATlE Direct Drive Rotary

Fast response onrotarymotion,accomplish reliable 5-axis simultaneous function

Features of The Product

Fully closed loop control technology makes machine machining more accurate and reliable.
High-efficiency and high-accuracy machining.
Excellent human-machine interaction design ensures the operational comfort and convenience for operator.

Gantry structure makes machine dynamic property and precision retention better.
Equip with DD direct drive 5-axis rotary tables.
The moving components are completely isolated from the machining area that is easy for machine cleaning.

A large torque or high-speed spindle is optional for meeting machining needs of different industries.

Application Cases

Meniscus Prosthesis Part

Teeth Shape Electrode

Earphone Mold

Femoral Condyle Testing Part

Spinal Intraosseous Expander

5-Axis Car Light

5-Axis Lens

5-Axis Composite Testing Part

Impeller

Specifications

Items	Technical Parameter
X/Y/Z travel	600/350/300mm
Work table dimension	Φ300mm
Max workpiece size	Φ350x270mm
Max load of worktable	100kg
Machine net dimension	1990×2250×2550mm（Circular type tool magazine） 2300×2250×2550mm（Chain type tool magazine）
Machine net weight	7000kg
Click for details in PDF	Specification Download

1732522533368693.pdf
